See it, measure it, prove it – 3 phase Keysight IntegraVision power analyzer

11.11.2015 08:50

3 phase Keysight IntegraVision power analyzer

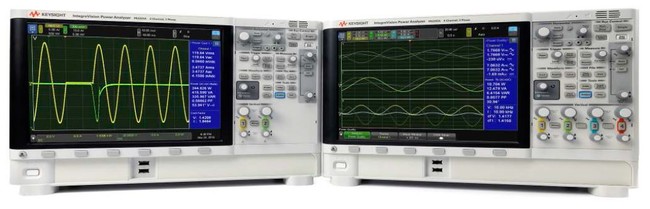

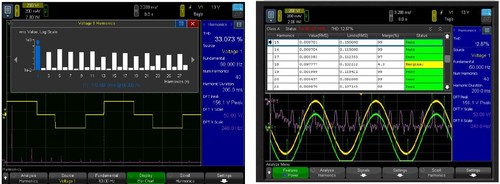

The Keysight PA2203A IntegraVision power analyzer (4 Channels, 3-Phase) is an intuitive combination of accurate power measurements and touch-driven oscilloscope visualization. Within a single instrument, it delivers the dynamic views you need to see, measure and prove the performance of your design. Use the wiring configurator to quickly create and modify complex 3-phase connections (delta and wye configurations). Verify 3-phase connections and visualize phase relationships with the phasor diagram. Get your design and validation work done quickly, accurately and confidently with IntegraVision’s ability to address multiple test scenarios with the flexibility of wide-ranging, isolated inputs. Visualize transients, in-rush currents and state changes with a high-speed digitizer that captures voltage, current and power in real time. Analyze power losses in the time and frequency domains using full Nyquist rate-based computations.

Make all of your critical power measurements with one instrument.

Key features & specifications

  • 4 power channels; each measures voltage, current and power; suitable for DC, 1-phase AC or 3-phase AC
  • Basic accuracy of 0.05% at 50/60 Hz
  • Isolated and floating input to 1000 V (Cat II)
  • 5 M samples/second at 16 bits on every waveform simultaneously
  • Measures voltage up to 1000 Vrms with bandwidth of up to 2.5 MHz
  • Measures current directly using 2 internal shunts (2 Arms and 50 Arms) with bandwidth of up to 100 KHz
  • Supports external current probes and transducers of up to 10 V full scale with bandwidth of up to 2.5 MHz
  • Bench-top friendly footprint with 12.1” touchscreen


The Keysight IntegraVision power analyzer is ideal for R&D engineers who want to quickly and interactively measure AC and DC power consumption, power conversion eficiency, operational response to stimulus and common AC power parameters such as frequency, phase and harmonics – all with 0.05 % basic accuracy and 16-bit resolution. The power analyzer enables engineers to characterize power consumption under highly dynamic conditions with 5 million samples per second digitizing speed and 2.5 MHz bandwidth.


Closer information can be found HERE.
