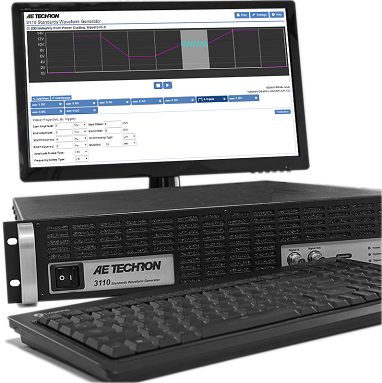

AE Techron 3110: DC to 300 kHz standards waveform generator

AE Techron introduced new  3110 simple to-use yet powerful standards waveform generator. It can be combined with other AE Techron products to quickly create a wide range of powerful and intelligent EMC test solutions. The 3110 comes with an extensive library of tests for many automotive and aviation standards. Tests can be modified and saved for future use in the 3110’s library, which has the space to store more than 300,000 tests total.

New generator produces standard signals and waveforms with or without a DC offset. Frequency, amplitude and DC offset can be fixed or swept, and sweeps can be linear, logarithmic or exponential. It can create dropouts and surges with rise and fall times as fast as 3µs. Individual signal duration can be as short as 10µs or as long as 49 days. It can also produce ripple waveforms of up to 300 kHz.

It offers unique and powerful “wave controls” that make it easy to build complex tests containing repeating waveforms with up to four variables concurrently changing. In addition, tests can be imported from the 3110 library and linked to form multi-test programs that can also be set to repeat, loop or wait for a trigger.

The 3110 can be used with other AE Techron products to create versatile audio-frequency test systems capable of performing tests for a wide range of automotive and aviation Standards. Choose the 7000-series model that meets your output requirements, or combine two or more amplifiers to create a multi-amp system for additional voltage or current output. When the 3110 is used with a 7000- series amplifier, it operates as an intelligent system controller, continuously monitoring the amplifier’s status. If an amplifier fault occurs, the 3110 will instantly halt testing, saving time and preventing potential damage. Together, the 3110 and 7000-series amplifiers create an intelligent, modular test system. When used for automotive testing, test system capabilities include 13.5 VDC with a surge potential of up to 100V, or continuous power ratings from 15A to 240A DC. For aviation testing, system capabilities include 14 VDC/28 VDC or 115 VAC/230 VAC with surge voltages up to 360 VAC.

Product page - http://www.aetechron.com/IND-EMC-3110.shtml.
