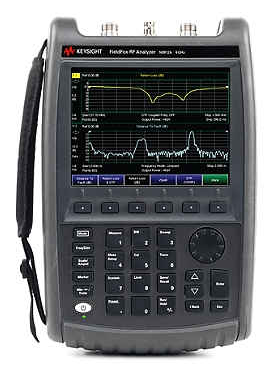

How to measure with FieldFox spectrum analyzers up to 110 GHz? Easy!

OML introduces its new mixer series, MxxHxDC, that is specifically designed for handheld spectrum analyzers as a portable solution for millimeter wave spectrum analysis measurement. Utilizing the handheld spectrum analyzer tracking generator as an LO source and the built-in DC supply; this harmonic mixer provides you the ease of portable field measurement in a one box solution.

Available in waveguide bands WR-12 (60-90 GHz), WR-15 (50-75 GHz) WR-10 (75-110 GHz). OML’s innovative millimeter wave frequency extension products can help you with your testing in the emerging application areas such as WiGig, 5G, collision avoidance radar systems, E-Band backhaul and military & defense.

How easy it is can be seen on this video:

More info about handheld mixer configuration with Keysight FieldFox can be found HERE (PDF).
