New AC magnetic field generator / immunity tester Haefely MAG1000

The MAG 1000 is a new power frequency tester capable of testing all of IEC 61000-4-8 introduced by Haefely. It can help determine if a nearby magnetic field will influence the operational ability of your equipment.

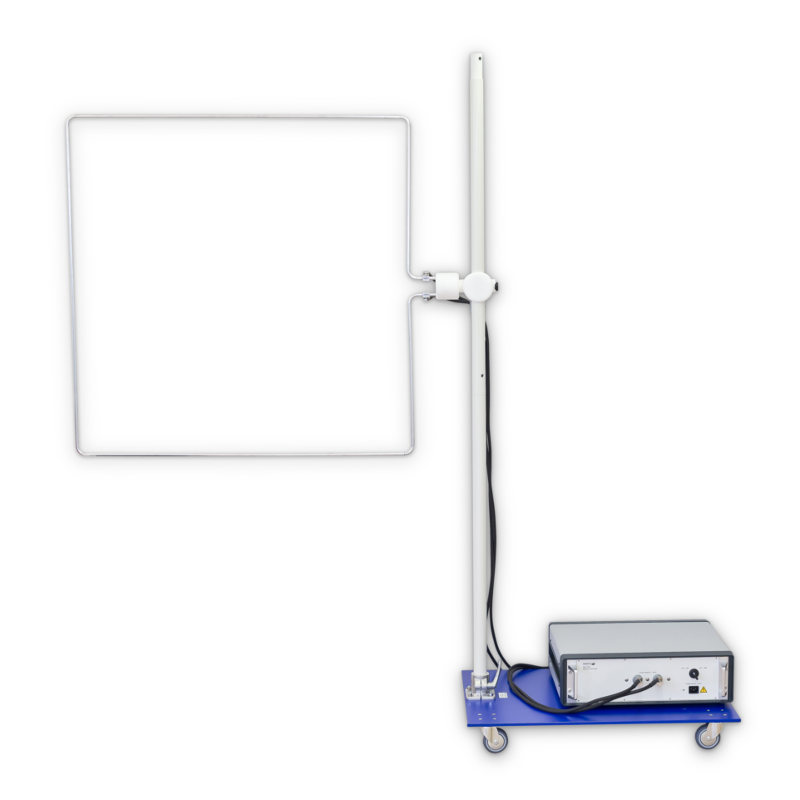

The MAG 1000 has a 1m x 1m square, 90 turn antenna. An internal power supply eliminates the need for an external power supply to the generator and a simple interface allows test parameters to be set easily.

Magnetic field strength is defined at the center of the coil with ±3dB variation. Magnetic field is orthogonal to the coil plane. Coil dimensions define the maximum EUT size as being 0.6m x 0.6m x 0.5m. The MAG 1000 can be used for both vertical and horizontal plane testing by simply rotating the coil antenna in its mounting on the included stand. The MAG 1000 can be operated in both short duration tests and continuous testing which makes it an ideal stand-alone test system for IEC 61000-4-8 and others.

MAG1000 can generate AC magnetic field up to 1100 A/m strength with 50 or 60 Hz frequency. More information about this new instrument in our portfolio can be found in product sheet.
