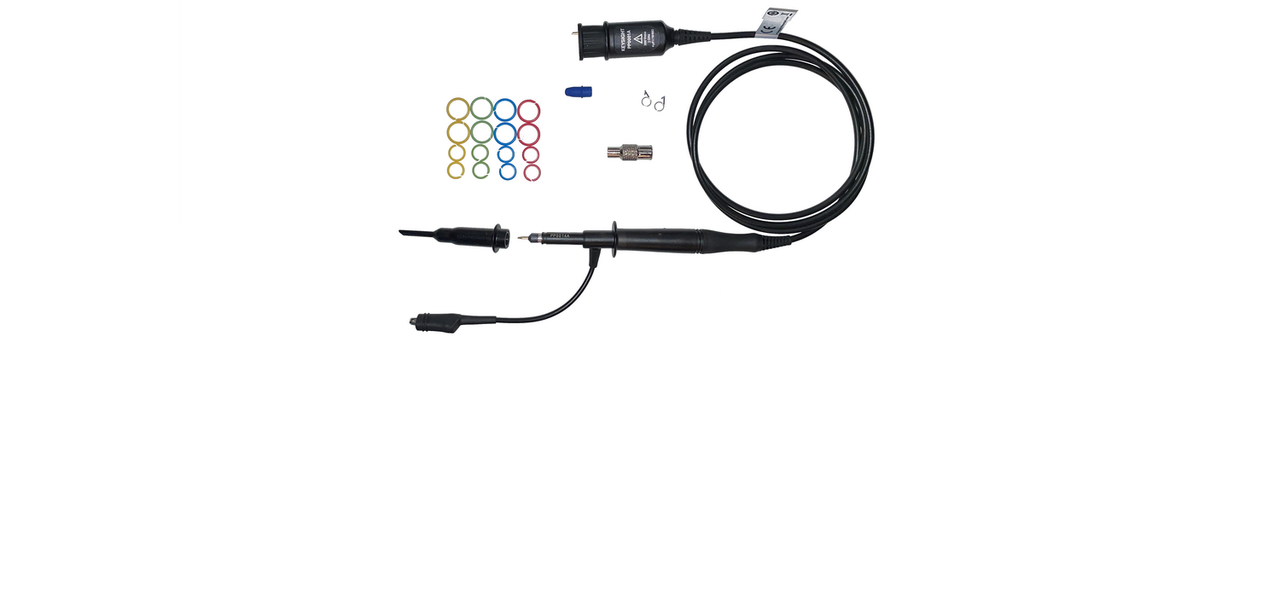

New scope probes Keysight High Z+, passive probes with active probes performance
New Keysight’s passive probes series with up to 1GHz of analog bandwidth with less than 4 pF of capacitive loading. It provides all the ease of use benefits of a passive probe, with the performance generally seen from an active probe.
New passive probes Keysight High Z+ allows to measure high voltage signals up to 1 GHz frequency. Currently three probes are available in this family:
| Model | Bandwidth | Input voltage | Input impedance | Tip |
| PP0001A | 1 GHz | 300 V CAT II | 10 MOhm / 4 pF | 5 mm tip |
| PP0002A | 800 MHz | 1.200 V CAT II | 40 MOhm / 2 pF | 5 mm tip |
| PP0003A | 1 GHz | 30 V CAT II | 10 MOhm / 4 pF | MMCX connector |
Keysight High Z+ probes are compatible with Keysight Infiniium and InfiniiVision oscilloscopes.
Detailed technical specifications of Keysight High Z+ probes can be found HERE.
