New test instruments by Aim-TTi

At the Electronica tradeshow, which took place in November 2018 in Munich, the Aim-TTi company introduced several new products which are now available for delivery to its first customers:

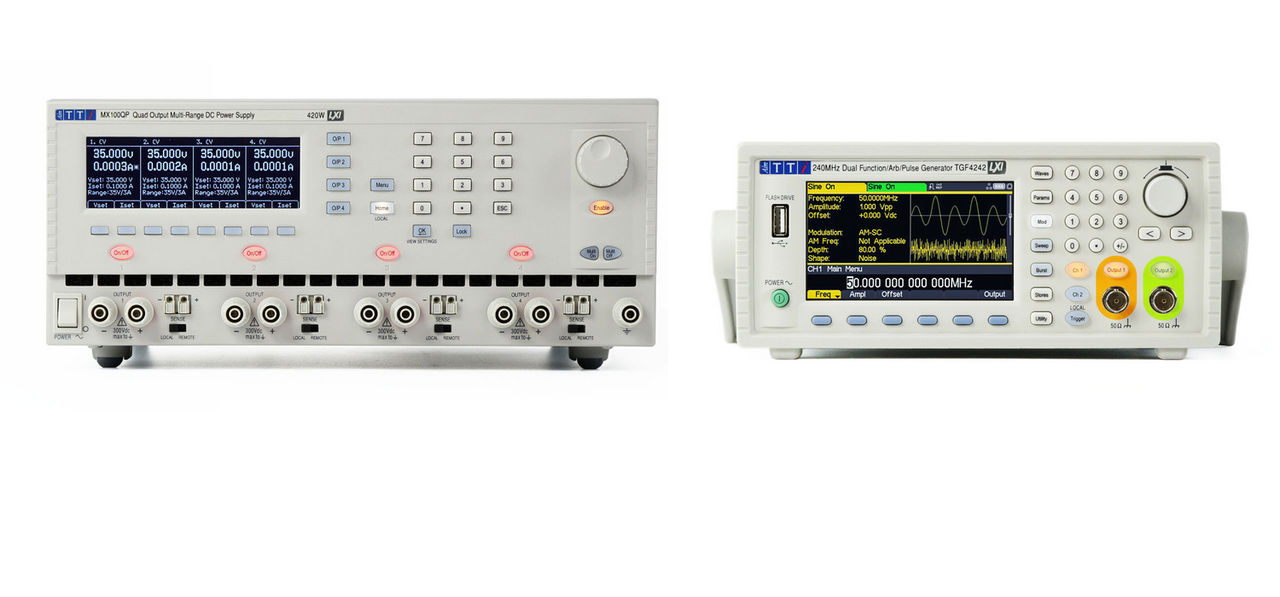

4-channel DC power supplies MX100Q and ​​MX100QP - DC power supplies with a total output power of 420 W. 35V/3A range is available on all channels, thanks to the „shared power mode“, several channels can be connected together internally to achieve highter output voltage up to 70V or current up to 6A. The MX100QP is equipped with GPIB, RS232, USB, LAN (LXI) interfaces and output terminals are duplicated on the rear panel of the instrument.

2-channel arbitrary waveform generators TGF4000 series - arbitrary generators with max. output frequency of 40, 80, 160 or 240 MHz (sinus waveform). Arbitrary mode with a sampling rate of 400 MSa/s, 14 bit resolution (TGF4042, TGF4082 models) or 800 MSA/s, 16 bit (TGF4162, TGF4242 models) and a waveform lenght up to 8.192 points.

The TGF4000 series generators are equipped with color graphic display with an intuitive user interface. USB and LAN (LXI) interfaces are available for PC control, GPIB can be added as paied option.
