NFC testing with Keysight InfiniiVisionX oscilloscopes

Testing NFC-enabled devices is essential during the design validation phase, as well as during manufacturing test to ensure quality and reliability of data transmission. This is especially important when you consider that the data being transferred/exchanged between NFC-enabled devices is often secured financial transactions. The Keysight Technologies’ DSOXT3NFC/DSOX4NFC automated NFC test software provides thorough physical layer testing with fast throughput.

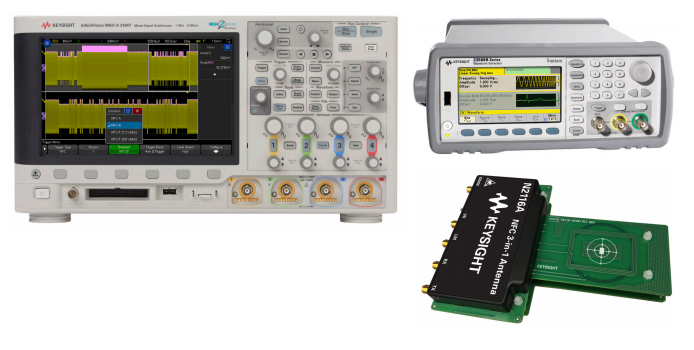

Although the DSOXT3NFC/DSOX4NFC software does not provide complete NFC conformance testing, this software package is based on Keysight’s award-winning Infiniium oscilloscope conformance test software to provide a low-cost test solution that includes a broad range of the most critical tests to einsure quality and reliability. The PC-based software controls a Keysight Technologies, Inc. Trueform waveform generator to produce a variety of test signals based on various NFC standards, and then measures the response captured by a Keysight Technologies, Inc. InfiniiVision X-Series oscilloscope with real-time sampling up to 5 GSa/s.

Measurement results are then compared against published NFC specifications for pass/fail conditions. The DSOXT3NFC/DSOX4NFC software also provides complete report generation with statistical and margin analysis capabilities

More info can be found HERE (.pdf).
