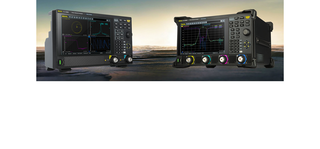

New RIGOL DNA5000/DNA6000 vector network analyzers

25.03.2026 12:30

RIGOL has expanded its lineup of RF and microwave test instruments with two all-new series of network analyzers: the DNA5000 and DNA6000.

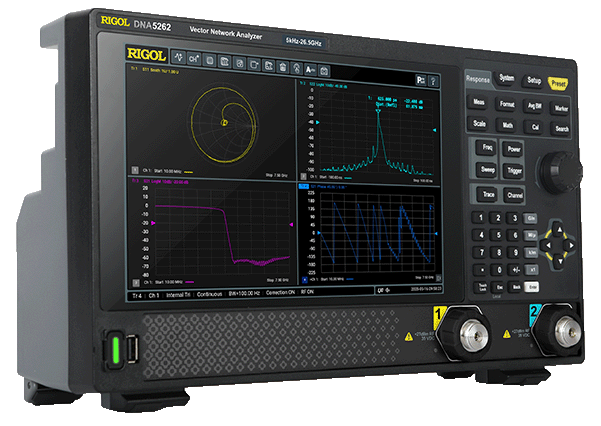

DNA5000

The DNA5000 series is a compact and cost-effective 2-port VNA platform designed for high-performance RF measurements in a portable form factor.

Key technical highlights:

Frequency range 5 kHz to 26.5 GHz (model dependent)
2-port
High dynamic range up to 127 dB (typ.)
Frequency resolution 1 Hz
IF bandwidth 1 Hz to 10 MHz
Maximum output power up to +10 dBm
Low trace noise 0.005 dB (typ.)
Comprehensive calibration support
10.1″ capacitive touch display, compact and lightweight design
LAN, USB, HDMI interfaces with SCPI and Web Control support

Typical applications include RF component characterization, cable and antenna testing or university labs.

Overview DNA5000 series models

Model	No. of ports	Frequency range	Connector
DNA5042	2	5 kHz – 4,5 GHz	N(f)
DNA5082	2	5 kHz – 8,5 GHz	N(f)
DNA5142	2	5 kHz – 14 GHz	N(f)
DNA5202	2	5 kHz – 20 GHz	3,5mm(m)
DNA5262	2	5 kHz – 26,5 GHz	3,5mm(m)

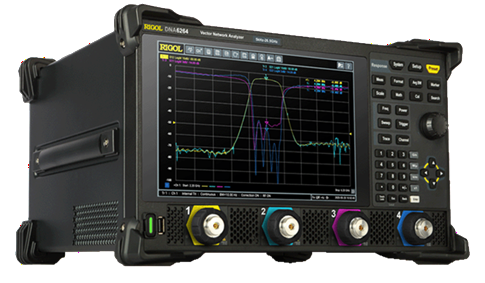

DNA6000

The DNA6000 series targets more advanced RF and microwave applications, offering 2-port and 4-port configurations for complex multi-port measurements.

Key technical highlights:

Frequency range 5 kHz to 26.5 GHz (model dependent)
2-port and 4-port models
High dynamic range up to 127 dB (typ.)
Frequency resolution 1 Hz
IF bandwidth 1 Hz to 10 MHz
Maximum output power up to +10 dBm
Very low trace noise 0.003 dB (typ.)
Full calibration support including mechanical cal kits and ECal, for both 2-port and 4-port systems
Extended connectivity: LAN, USB, HDMI, GPIB, Application I/O
Remote operation via SCPI and Web Control

The DNA6000 series is well suited for automated RF test system integration or multi-port device testing.

Overview DNA6000 series models

Model	No. of ports	Frequency range	Connector
DNA6082	2	5 kHz – 8,5 GHz	N(f)
DNA6084	4	5 kHz – 8,5 GHz	N(f)
DNA6142	2	5 kHz – 14 GHz	N(f)
DNA6144	4	5 kHz – 14 GHz	N(f)
DNA6202	2	5 kHz – 20 GHz	3,5mm(m)
DNA6204	4	5 kHz – 20 GHz	3,5mm(m)
DNA6262	2	5 kHz – 26,5 GHz	3,5mm(m)
DNA6264	4	5 kHz – 26,5 GHz	3,5mm(m)

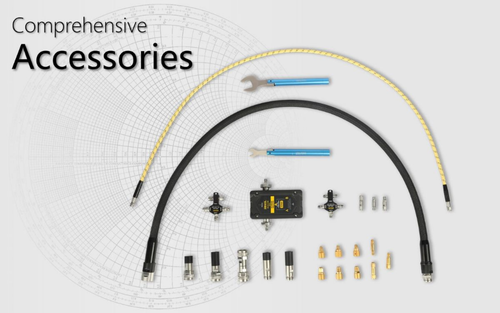

A wide range of essential accessories is also available, such as precision test cables, adapters, and calibration kits (both mechanical and electronic).
